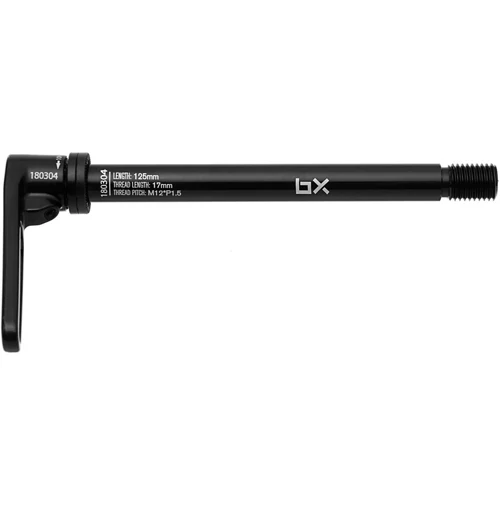

Brand-X Twist Lever Thru Axle

Brand-X Twist Lever Thru Axle

The Brand-X Twist Lever Thru Axle is made from durable aluminium to ensure it is hard-wearing and ready for whatever challenges you meet on the trails. These Thru Axles from Brand-X are available at a price that won’t break the bank and make an ideal alternative to your fork or frame’s original.

Optimised Lever Design

Unlike the common/standard bolt-thru axle, the Brand-X version has an easy to use, solid twist lever. There’s no need to twist and back off to get a clamping mechanism working, simply twist the lever until your wheel is solidly locked in place. The lever sits on splines and can engage/disengaged to set the lever in your desired position once tightened in place. Available in a range of sizes, Brand-X has produced these twist lever thru-axles in the most commonly seen lengths and thread pitches.

Note: It is recommended to precisely measure the dimensions of your existing thru-axle before ordering, see the dimension table below.

Features:

• Material: AL7075 Aluminium
• CNC Precision engineered
• Engage/ disengage twist lever
• Hollow for weight saving
• 6mm Allen hey head at the bolt end for 2-way adjustment

Specifications:

• Option 1: For solid road/gravel/cyclocross forks that use the Shimano E-Thru 12x100mm axle standard with an M12x1.5 thread pitch.
• Options 2 and 3: For frames with the 142x12mm axle standard and that use the Shimano E-Thru 12mm axle standard with an M12x1.5 thread pitch. There are two length options as some frames have thicker dropouts.
• Option 4: For frames with the 142x12mm axle standard and that use the SRAM 12mm thru-axle with the M12x1.75 thread pitch.
• Option 5: For frames with the “Boost” 148x12mm axle standard and that use the SRAM 12mm thru-axle with the M12x1.75 thread pitch.
• Option 6: For standard RockShox suspension forks with the 15x100mm axle standard and that use the “Maxle” system with an M15x1.5 thread pitch.
• Option 7: For the “Boost” version of  RockShox suspension forks with the 15x110mm axle standard and that also use the “Maxle” system with an M15x1.5 thread pitch.
• Option 8: For Fox Suspension forks with the standard 15x100mm axle standard that use the “Kabolt” system with an M14x1.5 thread pitch.

Dimensions:

Option	Type	Hub Size	Length	Thread Length	Thread Pitch	Weight
1	E-Thru	12x100mm	125mm	17mm	M12x1.5	60g
2	E-Thru	12x142mm	166mm	17mm	M12x1.5	73g
3	E-Thru	12x142mm	170mm	17mm	M12x1.5	75g
4	SRAM	12x142mm	172mm	20mm	M12x1.75	70g
5	SRAM	12x148mm	180mm	20mm	M12x1.75	78g
6	RockShox	15x100mm	146mm	11mm	M15x1.5	92g
7	RockShox	15x110mm	158mm	11mm	M15x1.5	98g
8	Fox Kabolt	15x100mm	146mm	13mm	M14x1.5	91g
9	Fox Kabolt	15x110mm	156mm	13mm	M14x1.5	96g
