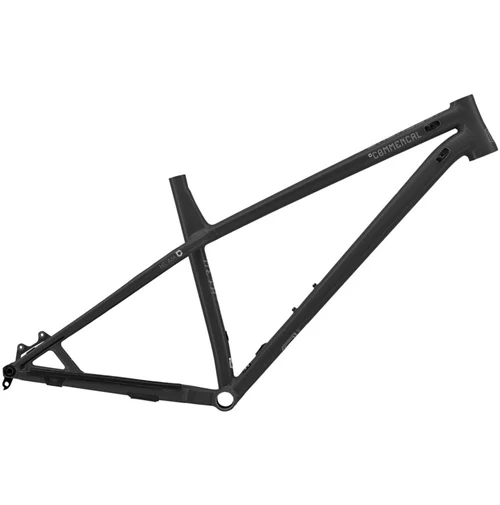

Commencal Meta HT AM Frame 2023

Commencal Meta HT AM Frame

The Meta HT AM Frame is strong, lightweight and versatile all mountain hardtail frame that’s ideal for cross country, trail and all mountain riding. It features long and slack enduro-inspired geometry and is compatible with 160mm-travel suspension forks and has a huge-tyre clearance for 27.5×2.8″ tyres. Plus, it’s compatible with 27.5″ or 29″ wheels, has internal cable routing, dropper post cable routing and Boost type rear hub axle spacing.

Modern Hardtail Mountain Bike Frame with Updated Geometry

The first choice for many, the Meta HT AM frame quite simply makes you want to ride. To stay ahead of the curve, Commencal looked at the little details that make the difference. On this updated version, the seat tube is lowered, which means it is now possible to install a longer travel seat post. Also, the choice of size is no longer restricted by a seat tube that’s too high – this is particularly useful for those who want a longer bike.

Compatible with 650b and 29er Wheels

A semi-rigid frame allows more pedalling efficiency, has a lighter weight and it reduces essential maintenance. Also, the Commencal Meta HT AM Hardtail Frame facilitates both 27.5 and 29-inch wheels. The 27.5” (650b) wheels are recommended for small and medium sized riders or those who prefer increased handling, comfort and grip, 29” wheels are recommended for medium and large sized riders or for those who favour efficiency, precision and performance.

Ideal for Enduro, All Mountain and Trail Riding

Commencal research confirms that it is the bike in their range that is most widely used, and to do most things! Enduro, off-road rides, urban missions, pump track laps. It goes everywhere.

Versatile, Durable and Stylish Hardtail All Mountain Frame

Commencal believed in this bike many years ago and we have become real specialists. To keep current, they’ve worked on the smallest details that make the biggest differences.

One upgrade is that the seat tubes are lowered. It’s a choice of reason which offers two advantages:

• It is now possible to fit longer travel seat posts
• The choice of frame size is no longer limited by a seat tube that is too high when purchasing the complete bike. Particularly useful for those who want a longer bike

For the rest, Commencal is continuing with the winning formula that made this bike design so successful. And it’s development revolves around reliability as a priority:

• A semi-rigid frame which allows for better pedalling, a lighter weight and reduced maintenance
• A fork with 150mm or 160mm travel which provides comfort and/or safety depending where and how it’s being used
• Models are now fitted as standard with 29/27 wheels in sizes S/M and 29-inches in sizes L/XL
• The frame can still fit a 27.5-inch and 29-inch wheel no matter what the frame size

The Commencal Meta HT AM Frame is one of those frames that simply makes you want to ride!

Features:

• Frame Material: Al 6061 T6
• Frame Weight: 2.1 kg / 4.6 lbs
• Recommended / Max Fork Height: 561 mm / 572 mm
• Headset Dimension: Tapered 1 1/8″ / 1 1/2″
• Headset Type: ZS44 / ZS56
• Maximum Tyre Dimension (ETRTO): 27.5″ – 71-584
• Disc Brake Standard: International Standard
• Rear Rotor Max Size: 200 mm
• Seatpost / Seat Clamp Diameter: 31.6 mm / 34.9 mm
• Minimum Seatpost Insert: 120 mm
• Bottom Bracket Type: 68 mm BSA
• Maximum Chainring Size: 34T
• ISCG Mounts: No
• Front Derailleur Type: No
• Rear Hub Compatibility: 148 x 12 mm Maxle standard boost
• Accessories: Chainstay protector, seatstay protector, rear axle
