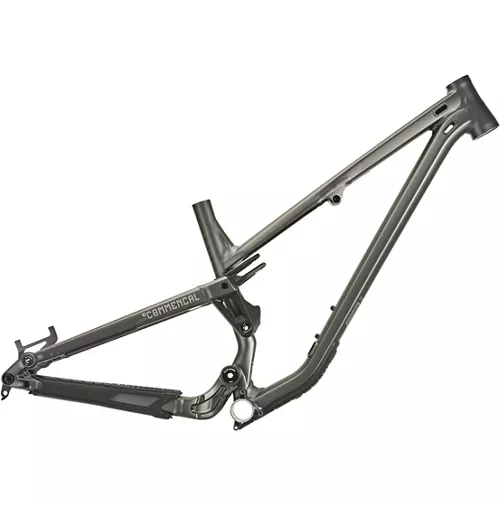

Commencal Meta SX Frame 2023

Commencal Meta SX Frame

The Meta SX Frame is an all-mountain full-suspension frame from Commencal is ideal for enduro racing and all-mountain adventures. This versatile frame offers 160mm rear wheel travel and is compatible with long-travel suspension forks and provides superb tyre clearance for modern trail tyres. It also comes with frame protection and a rear axle.

Commencal has been working on 29/27 ‘Mullet’ bikes and frames for many years now with their different downhill (DH) teams. This work has allowed Commencal to understand that to transform a regular bike with the same sized wheels into a bike with different sized wheels, it isn’t effective to just throw a 27-inch wheel on the back. The geometry and kinematics of the bike must be completely reworked and it is thanks to this experience that we are now able to present the most successful version of the Meta V4 they’ve ever produced, the Meta SX.

Equipping this Meta SX with different sized 29/27-inch wheels is not the result of a trend that Commencal is following. Quite simply, this way the bike is much more balanced, specifically relating to grip on the front and back – the large 29-inch wheel on the front allows more confidence and rolling capacity whilst the 27.5-inch rear wheel offers more manoeuvrability and responsiveness.

The result is a bike that is more agile and easier on the steeps, more efficient under braking and more dynamic when pushing hard.

Once again, Commencal’s choice to work with aluminium has allowed them to accompany this change in wheel size with an adjustment of the geometry. A shorter 10mm reach, a straightened steerer angle and extended (10mm) chainstays mean that the rider is naturally repositioned in the centre of the bike and will therefore have the ability to be more precise and agile in their technique.

Undoubtedly, one of the points that have changed the most is the way the suspension works. Apart from the kinematics which has been reworked to provide more liveliness, Commencal made a point of managing the stiffness of the rear triangle. Through new double row Enduro Bearings, eliminating any deformation, the new Meta SX frame offers perfect deformation/rigidity management to provide grip, comfort and performance.

In addition to all this in-depth work, as on their Meta Power TR and Meta TR models, Commencal now offers a “Flip Chip” on the shock extension in order to be able to better adjust the geometry, and therefore fit with your style. This system also means you can adapt the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on your preferences, you can have the choice between a dynamic bike that’s perfect for big pedalling trips, or a more progressive version that is ideal for days in the bike park or on more committed trails.

The welds have been the subject of meticulous work to reduce them as much as possible without affecting the solidity of the frame. The cable routing is neat for easier maintenance, the cables being easily accessible in the down tube, while grommets are placed at the ends to give perfect support and prevent penetration of water and mud.

Features:

• Frame Type: Enduro
• Frame Material: Al-6066
• Frame Weight: 3,9 Kg / 8.59 Lb
• Rear Wheel Travel: 160 mm
• Shock Length / Stroke: 230 x 62,5 mm
• Piggy Back Shock Compatible: Yes
• Shock Bushings: 20 x 10 Mm
• Recommended / Max Fork Height: 581 mm / 591 mm
• Headset Dimension Tapered: 1-1/8″ / 1-1/2″
• Headset Type: Zs44/zs56
• Maximum Tyre Dimension (ETRTO): 68 mm
• Disc Brake Standard Postmount: 200 mm
• Rear Rotor Max Size: 220 mm
• Seatpost / Seat Clamp Diameter: 34.9 mm / 38.5 mm
• Bottom Bracket Type Press Fit: BB92
• ISCG Mount: ISCG05
• Front Derailleur Type: No
• Rear Hub Compatibility: 12 x 148 Mm
• Accessories: Down Tube Protector, Chainstay Protector, Seatstay Protector, Rear Wheel Axle
• Pre Cute Anti Noise Foam Tubes for Derailleur Hose / Brake Hose / Dropper Hose
• Installing a bottle cage has also been made easy
