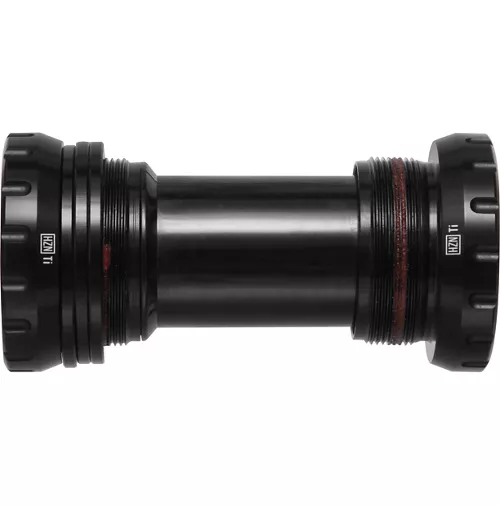

Nukeproof Horizon Shimano Bottom Bracket (24mm)

Nukeproof Horizon Shimano Bottom Bracket (24mm)

Created for the most challenging MTB (mountain bike) rides, the Nukeproof Horizon Shimano Bottom Bracket is capable of handling even the most intense of trails. The Horizon Shimano Bottom Bracket has a machined alloy construction with an anodised finish to give it an extra layer of protection against corrosion, making it ready to hit the trails for all-day epics.

MTB Bottom Bracket with Titanium Coated Bearings

All set for fast-paced mountain bike adventures, this bottom bracket is equipped with titanium coated race bearings and stainless-steel balls. The titanium coating is applied in a vaporised vacuum environment, which allows its structure and density to be fine-tuned. ABEC 5 certified and protected against the elements, the Nukeproof Bottom Bracket 24mm Ti Coated Stainless is an excellent upgrade for riders who want a reliable component on tough mountain bike rides.

Please note: Nukeproof is also offering a two-year warranty on their bottom brackets including the bearings.

Click here to view and download our Nukeproof Technical Manual BSA 68 73mm Shimano 24mm to ensure compatibility.

Click here to view and download our Nukeproof Technical Manual BSA 83mm Shimano 24mm to ensure compatibility.

Click here for a Step by Step Installation Guide.

Click here to view the Nukeproof Step by Step How to Guide for Bearing Replacement.

Installation

A Shimano Hollowtech II type tool is required for installation – 16 notch 44mm OD. available here

Features:

• Cup Material: Alloy
• Bearing Material: Titanium coated race bearings
• Ball Material: Stainless-Steel
• Finish: Anodised
• Use: MTB
• Compatibility: Shimano Hollowtech II, Raceface X-type and other 24mm cranks
• Thread: BSA 1.37″x24 TPI
• Certification: ABEC 5

Manufacturer Part Numbers:

• Black 68-73mm: NUKTK878-TSBB
• Black 83mm: NUKTK878-83-TSBB
• Blue 68-73mm: NUKTK878-TSBBBLU
• Blue 83mm: NUKTK878-83-TSBBBLU
• Copper 68-73mm: NUKTK878-TSBBCOP
• Copper 83mm: NUKTK878-83-TSBBCOP
• Grey 68-73mm: NUKTK878-TSBBGRY
• Grey 83mm: NUKTK878-83-TSBBGRY
• Purple 68-73mm: NUKTK878-TSBBPUR
• Purple 83mm: NUKTK878-83-TSBBPUR
• Red 68-73mm: NUKTK878-TSBBRED
• Red 83mm: NUKTK878-83-TSBBRED
