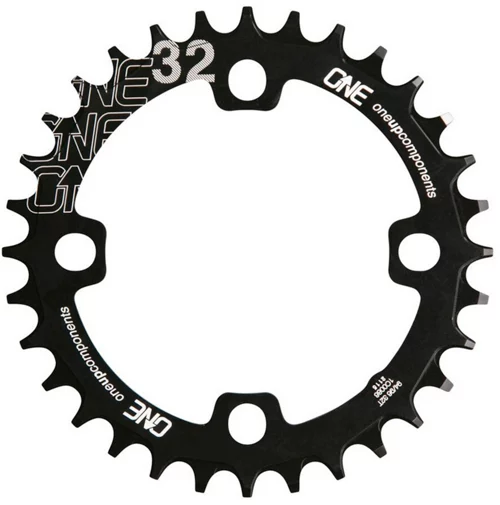

OneUp Components Narrow Wide Single Chainring

OneUp Components Narrow Wide Single Chainring

Compatible with a wide range of SRAM and Shimano cranksets, this hard-wearing Narrow Wide Single Chainring from mountain bike (MTB) component specialists OneUp Components provides ultra-efficient chain grip as you ride over the roughest terrain. Made from tough yet lightweight 7075-T6 Aluminium, plus featuring reinforced teeth and mud clearing chamfers, this chainring delivers the performance and strength you need and a long usage life.

Features:

• Material: 7075-T6 Aluminium
• Speed: 9,10,11 and 12-Speed
• Chainline: 48-50mm
• Bolt Circle Diameter (BCD): 4×94/96mm
• Compatibility: 94/96mm – all symmetrical 4 arm 94mm bolt circle diameter (BCD) cranks (SRAM X01, X1, GX), all symmetrical 4 arm 96mm BCD cranks (Shimano compact triple M782, M672, M622, M612); 104mm – all 104mm BCD cranks
• Narrow Wide tooth profile eliminates chain drop with the perfect chain mesh fit
• Perfect 49mm chainline with 2mm Shims included for a quieter drivetrain, improved chainring wear and best no drop performance
• Subtly slotted bolt holes allow for a perfect fit with both 94 and 96 BCD symmetrical crank arms
• Reuse your existing 8-10mm long ring hardware – no new bolt packs required
• Aggressive crud chamfers for awesome mud shedding performance and extended ring life
• Reinforced wide tooth design provides maximum ring durability when run without a bash guard
• 104-30T rings have integrated shims and chainring bolt threads to allow the smallest ring size possible
• Weight: 94mm – 43g (30T), 49g (32T), 58g (34T); 96mm – 43g (30T), 49g (32T), 58g (34T); 104mm – 40g (30T), 44g (32T), 54g (34T), 2g (4x shims)

Please Note: NOT compatible with 10-Speed Shimano XT armsets and also NOT compatible with 12 Speed Shimano/Hyperglide Chains.

Please Note: Shims are included with ring. For 2x crank conversions, shims between the crank and ring get you back to an ideal 49-50mm chainline. For 3x crank conversions, shims under the bolt heads allow reuse of your 3x hardware.
