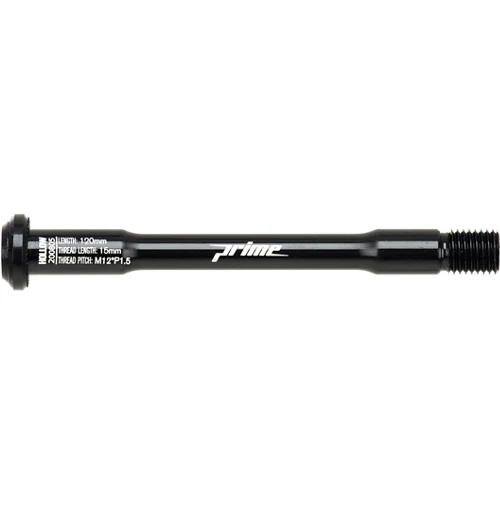

Prime Lightweight Road Thru Axle

Prime Lightweight Road Thru Axle

If you’re looking to shave some grams from your disc brake road bike but still retain the same confidence-inspiring hold that a 12mm thru axle provides, this Prime Lightweight axle is the perfect choice. An ideal upgrade from your bike’s bulky factory fitted model, it has a low profile, leverless design to give your modern road bike clean looks and extra security when you leave it unattended. Tough, strong and durable, these road bike thru-axles can easily be tightened up with a 6mm Allen key.

Features:

• Material: AL7075
• Low profile and lightweight
• CNC Precision engineered
• Hollow for weight saving
• Torque to 10Nm

Available in a range of sizes, Prime has catered for the most common road bike lengths and thread pitches:

Option	Type	Hub Size	Length	Thread Length	Thread Pitch	Weight
1	E-Thru	12x100mm	120mm	15mm	M12x1.5	24g
2	E-Thru	12x100mm	124mm	15mm	M12x1.5	25g
3	E-Thru	12x142mm	160mm	15mm	M12x1.5	28g
4	E-Thru	12x142mm	163mm	15mm	M12x1.5	29g
5	E-Thru	12x142mm	166mm	15mm	M12x1.5	30g
6	E-Thru	12x142mm	170mm	15mm	M12x1.5	30g
7	E-Thru	12x142mm	173mm	15mm	M12x1.5	31g

Manufacturer Part Numbers:

• Front:
  • 120/15/M12*P1.5: PLRDTA120B
  • 124/15/M12*P1.5: PLRDTA124B
• Rear:
  • 160/15/M12*P1.5: PLRDTA160B
  • 163/15/M12*P1.5: PLRDTA163B
  • 166/15/M12*P1.5: PLRDTA166B
  • 171/15/M12*P1.5: PLRDTA171B
  • 173/15/M12*P1.5: PLRDTA173B
