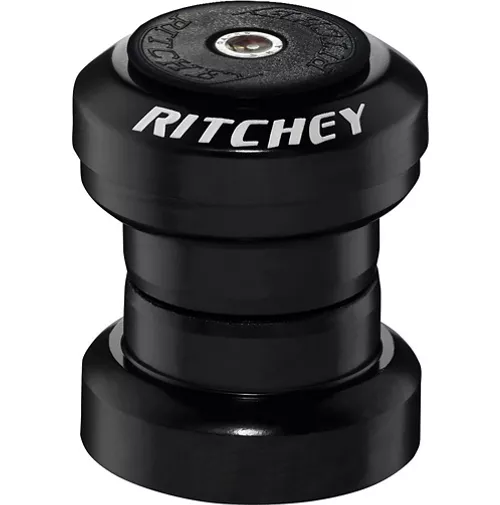

Ritchey Logic V2 Conventional Headset

Ritchey Logic V2 Conventional Headset

Ritchey has made its tough and smooth operating Logic V2 Headset with a smaller upper bearing to keep the weight low and a larger lower one to withstand hard use and heavy impacts. Extensively tested and refined to not just meet but to double the required European safety standards, this conventional headset delivers a performance and safety level you can rely on. Built with deep top and bottom cups for a solid install into your bike’s headtube it’s finished off with Ritchey’s waterproof internal grease so you’ll enjoy many years of friction-free, precise steering.

Features:

• Headset Type: Conventional external type
• Steerer Tube Compatibility Size: Straight 1 1/8″
• Bearing Type: Retainer ball bearing
• Stack Height: 30.2mm
• Upper Bearing Dimensions: 34mm external, 28.6mm internal
• Lower Bearing Dimensions: 34mm external, 30mm internal
• S.H.I.S information: EC34/28.6 / EC34/30
• Upper Cone: Steel
• Upper Cup: Steel
• Lower Cup: Steel
• Crown Race: Steel
• Headset Adjuster: Plastic
• Small upper angular contact bearings save weight, larger lower bearings boost strength and durability
• Uses Ritchey grease
• Manufacturer’s Part Number: 200.HS247.121

Buy Ritchey Components from Chain Reaction Cycles, the World’s Largest Online Bike Store.
