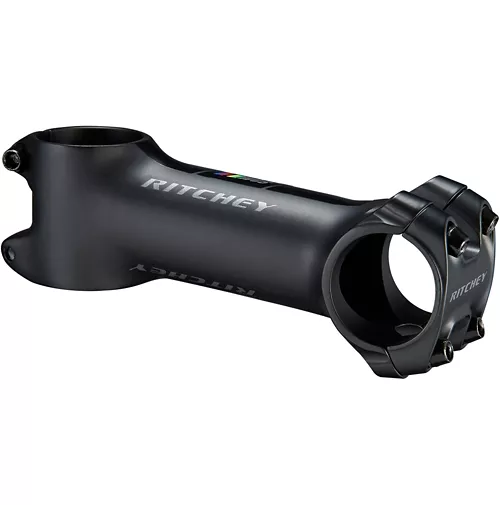

Ritchey WCS C220 Bike Stem

Ritchey WCS C220 Bike Stem

Building on the success of the popular C260 model, the WCS C220 Bike Stem has been updated to make it stronger, stiffer and even lighter. Ritchey has also improved its connection to your road bike’s handlebars, as the bar clamp area has a 220° wrap and a press-fit design for easy installation.

Secure and Stable Handlebar Engagement

The C220 handlebar clamp design interface creates a secure and stable handlebar engagement, which increases handlebar stiffness. The bolt engagements are aligned with the clamp face so that it holds the handlebar efficiently and avoids handlebar wear by reducing flexing. This specific clamp design means that the faceplate and stem body can be lighter and does not sacrifice reliability, strength or stiffness.

Features:

• Material: 3D Forged 2014 Aluminium
• Faceplate Bolts: 4x4mm Steel, coated black
• Steerer Tube Clamp Bolts: 2x4mm Steel, coated black, offset pattern
• Steerer Clamp Diameter: 1.1/8″
• Handlebar Clamp Diameter: 31.8mm
• Angle: Separate 73° or 84° options
• Use: Road racing
• Steerer Height: 42mm
• Faceplate Width: 42mm
• Invertible: Yes
• Stem Cap Included: No
• Torque Bolt Values: 5Nm Max on all hardware
• Stem body wraps 220° around bar clamping area, holding it in place for easy installation
• Weight: 132g (100mm)
