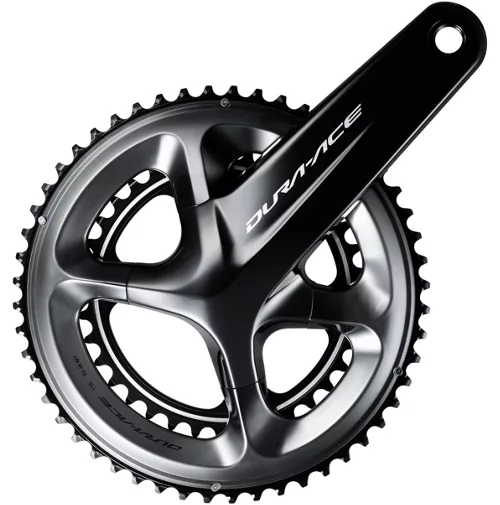

Shimano Dura-Ace R9100 Compact 11 Speed Chainset

Shimano Dura-Ace R9100 Compact 11 Speed Chainset

The Dura-Ace R9100 chainset is the highest level of cranks produced within the Shimano road product range. Designed to be light weight and stiff, this compact chainset comes with a 50-34t chainring setup ensuring you have a wide range ratio for climbing and descending.

The Shimano Dura-Ace R9100 Compact Chainset has been completely re-designed to offer the very best combination of light weight and stiffness. It features Shimano’s iconic 4-arm hollow spider that is made from hollow-forged aluminium.

Although the crank arms and spider arms are noticeably bigger, which increases stiffness, the overall weight has dropped by 7g over the previous edition of Dura-Ace.

The chainset has been adapted to work with disc brake road bikes that generally have 135mm rear hub spacing and shorter chainstay without the need to increase Q-factor thanks to its wider chainring spacing.

The Compact version offered here features a 50/34T chainring profile to offer an excellent rider tuned gear combination for varied conditions from flats to high mountains.

Please note: Bottom bracket is NOT included.

Features:

• Enhanced design saves 7g while maintaining rigidity
• Iconic 4-arm construction maintains high rigidity and reduces weight
• Optimised crank arm design strengthens key stress zones
• Chainring tooth profile is adapted for race bike specific disc brake systems
• Accommodates shorter chainstay (410mm) with 135mm/142mm rear hub spacing
• Hollowglide chainring construction maintains smooth shifting whilst reducing weight and increasing stiffness
• Axle Diameter: 24mm
• Bottom Bracket Included: No
• Weight: 609g (50/34T)

Manufacturer Reference Codes:

Black 110mm 50/34T 170mm: FCR9100C04 Black 110mm 50/34T 172.5mm: FCR9100D04 Black 110mm 50/34T 175mm: FCR9100E04 Black 110mm 50/34T 165mm: FCR9100A04

A 2-year warranty is offered with all Shimano products from Chain Reaction Cycles (3 years on Dura-Ace and XTR products).
