Vitus Auro Disc TT Frameset

Vitus Auro Disc TT Frameset

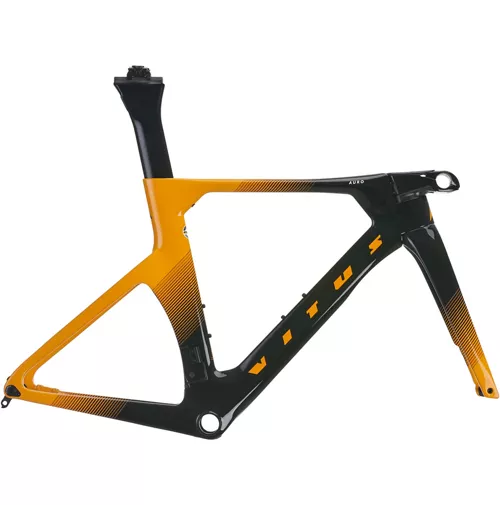

The Auro Disc TT Frameset is an aerodynamic full-carbon race frameset that is optimised for Time Trial (TT) and Triathlon racing. Engineered for use with disc brakes and features wider tyre clearance for greater stopping power, traction and control of your momentum. It also features internal cable routing and an aerodynamically optimised cockpit and seatpost.

Aerodynamic Time Trial and Triathlon Frameset

In time-trial and triathlon, you sweat the small details. You tweak, refine and obsess about the finer points and the things that others don’t see. The things that will save seconds out on the road or save the legs for when you stride out of transition.

Agile, Efficient and Fast

The Vitus Auro Frameset is optimised throughout to maximise efficiency without compromising comfort. And yet we’ve gone further, beyond the road, to create a platform that facilitates life in and out of a bike box, travel, simplified servicing and quick assembly. The complete package.

Aerodynamic Full-Carbon Frameset

The Auro has undergone an upgrade. Now engineered for disc brakes, the frame can accommodate a wider tyre, up to 28mm. Not only does this enhance airflow between your chosen wheelset and the frame but the ability to run a larger volume tyre has the added benefit of reducing stress on the body by improving comfort – a detail that becomes more important as time on the bike increases.

The headset sits flush with the top tube, reducing the frontal area and creating a clean line from the cockpit to the carbon seatpost. Even the seatclamp is adjusted via an internal wedge system, again ensuring that no unnecessary details are left out in the wind. The Vitus TT-specific saddle allows for a huge amount of customisation to fine-tune your setup and when the time comes to travel for your next big race, Vitus has made life simple and stress-free. Thanks to lower stem guides, the cables can be isolated for easy removal of the handlebars.

The small things add up. They all work together to make the Vitus Auro a TT or triathlon bike that’s tuned for performance. Because in these disciplines, every little detail makes a difference.

Key Features:

• EVO Carbon Platform: Aero Race Performance
• Frame Material: UD Carbon
• Wheel Size: 700c
• Intended Use: Road – Time Trial
• TT and Triathlon disc brake frameset
• Up to 28mm tyre clearance
• Full internal cable routing
• Includes frame, forks, stem, headset, seatpost, integrated seat clamp and axles

Features:

• Frame: Auro Disc Carbon, UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm Axle Spacing, Flat Mount, Axle Specifications: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
• Fork: Auro Disc Carbon, UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific
• Headset: FSA, No.42/ACB 1-1/8″
• Stem: Vitus Auro Disc Carbon, UD Carbon, Bar Bore: 31.8mm, S:85mm M:85mm L:105mm XL:105mm
• Seat Post: Auro Disc Carbon, UD Carbon, 400mm
• Seat Screw: Auro Integrated, Internal Wedge System
• F/axle: Vitus Alloy, 100 x 12mm
• R/axle: Vitus Alloy, 142 x 12mm
• Bottom Bracket Compatibility: Press Fit BB86
