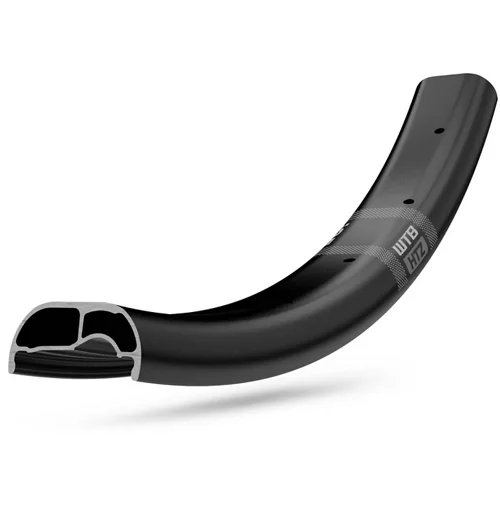

WTB HTZ I35 TCS 3.0 E-MTB Rim

WTB HTZ i35 TCS 3.0 E-MTB Rim

This high-quality E-bike rim is perfect for off-road riding as it features 4D angled spoke drilling, which eliminates binding and lateral loading, and disperses tension more evenly over a greater area. Ready for hitting the trails, this model’s symmetric outer profile offers equal dissipation of impact forces on both sides, while its asymmetric spoke hole drilling allows for even spoke tension and increased wheel strength.

Durable, Thick Walled Rim

E-bikes add to the riding experience by simply providing more for less. More distance, more laps, more climbs and more descents. With all those “mores” also comes more weight continually bashing on the components of an e-bike. In order to overcome the increased forces induced by the technological progression of modern e-bikes, WTB designed its HTZ rims with more material in every area of the rim prole. Every wall of the rim is 25-30% thicker in comparison to those on WTB’s standard rims, which WTB then paired with its proven I-Beam centre support to ensure no beating was too great for these rims. All HTZ rims are TCS 2.0 tubeless, feature asymmetrical spoke drilling, and are available in widths ranging from i23 to i35 in order to provide options for e-bikes ranging from e-assist gravel bikes to dual-crown downhill bikes that no longer need a truck to be shuttled.

Tubeless Ready E-Bike Rim

TCS 2.0 Tubeless ready and comes with a preinstalled Solid Strip, which lies beneath the tubeless tape and prevents sagging at the spoke holes, creating a smooth interface between the rim and tire bead. This prevents air from escaping around the bead and therefore requires less air volume and pressure to mount a tire. Solid Strip also protects the airtight tubeless system from being punctured in the case of a broken spoke. TCS 2.0 creates a more robust, easily installed and dependable tubeless system.

Features:

• Material: Alloy
• Use: E-bike
• ETRTO: 27.5″: 35-584; 29″: 35-622
• ERD: 27.5″: 569; 29″: 604
• Hole Count: 32 hole, 7mm offset
• Inner Width: 35mm
• Brake Type: Disc
• Tubeless Ready: Yes, TCS tubeless
• Single or Pair: Single rim
• Manufacturer’s Part Numbers: 27.5″: W020-0603; 29″: W020-0604
• Weight: 27.5″: 718g; 29″: 768g
