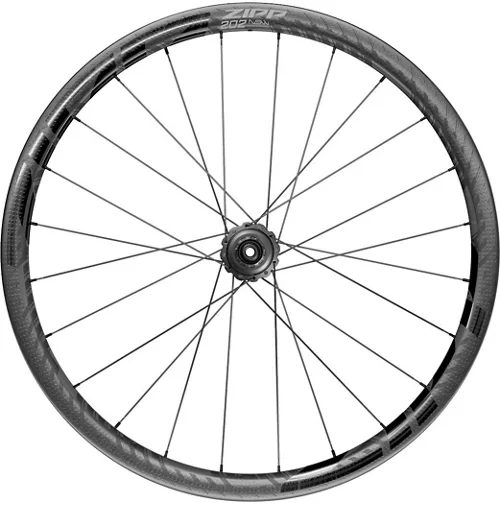

Zipp 202 NSW Carbon Tubeless Disc Rear Wheel

Zipp 202 NSW Carbon Tubeless Disc Rear Wheel

Zipp’s 202 NSW Tubeless Disc-brake model packs a heavy load of performance into a light and nimble rear wheel. This wheel flies up the toughest climbs, shaves time off descents, and handles deftly off the pavement. For aero performance, Zipp’s ABLC Sawtooth dimple design extends to the rim’s edge. The 202 NSW Tubeless Disc-brake is optimised for wide tyres with lower tyre pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 21mm, the wheelset is well suited for rough roads and tests fastest with a 28mm tyre in the majority of wind angles.

ABLC Sawtooth

The Sawtooth dimple design consists of 12 nodes that are specifically clocked to start aerodynamic shearing at a rate of 50hz at a rider speed of 20mph. Sawtooth accomplishes this by inducing small sheet vortices that shed at a low magnitude, but at a higher natural frequency, thus decreasing the laminar bubble effect on the aerodynamically shielded side of the rim’s profile to further reduce high yaw drag and improve crosswind stability.

Features:

• Rim Material: Carbon with UD Fibre finish and adhesive decals
• Use: Road
• Axle Type: 12x142mm Thru-Axle (TA)
• Internal Rim Width: 21mm
• Rim Depth: 32mm
• Rim Profile: Symmetrical
• Brake Compatibility: Disc Brake (Centre Lock rotor compatible)
• Size: 700c
• Tyre Compatibility: Clincher, Tubeless Ready
• Surface Texture: ABLC SawTooth
• Nipple Material: Aluminium
• Nipple Anti-rotation: Sapim Secure-loc
• Spoke Type: CX-Ray – Black
• Spoke Count: 24
• Spoke Pattern: 2 Cross
• Hub: Cognition
• Drive Body Type: SRAM/Shimano Road
• Axle Material: Aluminium
• Bearings: Cartridge, Steel
• Driver Mechanism: Axial Clutch
• Driver Body Material: Aluminium
• Max Tyre Pressure: 100psi
• Max Recommended Rider Weight: 250lbs
• Single or Pair: Single rear wheel
• Weight: 801g (approx)

Technologies:

• New Zipp graphics and cosmetic identity that scream speed. Applied using Zipp’s ImPress direct-print technology.
• Centre locking rotor interface. Lockring is included.
• Ships with 12mm rear end caps.
• Campagnolo driver body sold separately.
• Tubeless design provides secure performance when ridden at lower tyre pressures.
• Cognition DB hub features Axial Clutch™ technology to allow the freehub’s ratcheting mechanism to deliver half the mechanical drag of conventional three-pawl hubs.

Manufacturer’s Part Number:

• ZPWH8508000 Black 700c Shimano/SRAM
